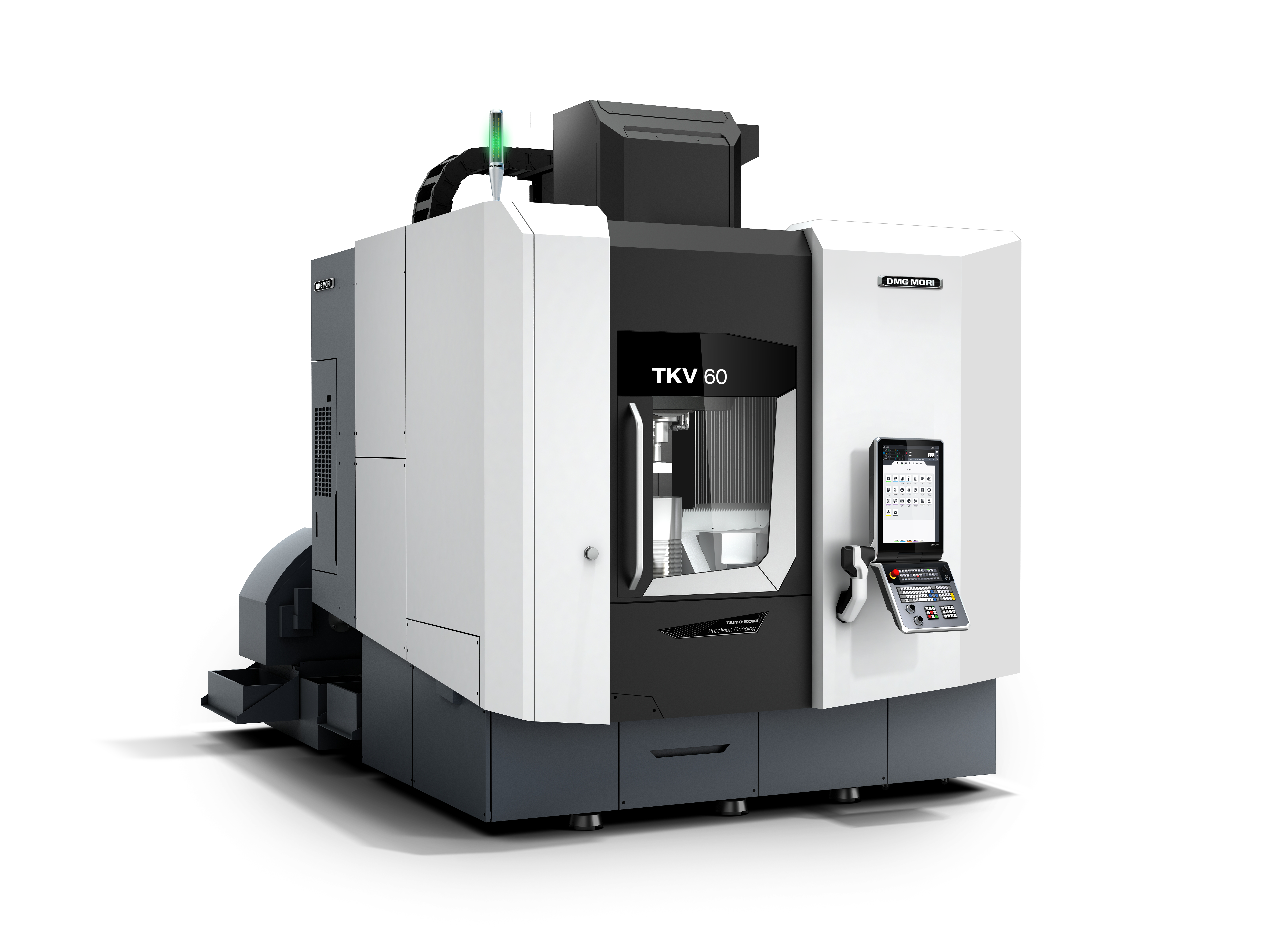

Vertical Multi-process Grinding Machine - Vertical Mate TKV 60
Upgraded model succeeding high precision and multi-process grinding
Equipped with the new grinding spindle developed with DMG MORI
- Applicable for middle-size workpiece up to max loading weight 500kg(1,102lb), work spindle swing ø600mm(23.6in).
- speedMASTER grinding spindle realizes highest output(15.0→18.5kW) and rotation speed(15,000→18,000min-1) of the conventional series.
- The user interface is changed to ERGOline X with user-friendly design providing increased visibility and operability. It supports Digital Transformation (DX) and anti-virus security.
- Automatic measuring device and Z-axis scale, which are essential for high-precision grinding, are included as standard.
- Capable of connecting to PH Cell pallet handling system developed by DMG MORI.
Module structure enebales to meet needs for high-mix, low-volume production flexibly.
Contributes to increased customer profits by improving productivity through unmanned operation during nighttime and holidays.
Movie
Specification
| Range of internal grinding diameter | ø20 mm(0.8 in) 〜 ø450 mm(17.7 in) |
|---|---|
| Range of external grinding diameter | 〜 ø600 mm (23.6 in) |
| Grinding length | ID 225 mm(8.9 in) / OD 300 mm(11.8 in) |
| Work spindle swing | ø600 mm(23.6 in) |
| Workpiece height | 500 mm(19.7 in) [including fixture] |
| Max. loading weight on work table | 500 kg(1,102 lb) [including fixture] |
| Grinding spindle rotation speed | 18,000min-1 |
| Floor space (W×D) | 2,715 mm(106.9 in) × 4,050 mm(159.4 in) |
Highlights
Roundness 1.0μm guaranteed
Even in developing a desired model by narrowing down to basic performance,
we make no compromises in accuracy. As the front runner of vertical grinding machines, Taiyo Koki provides high accuracy with multi-processing capability and contributes to various scenes of grinding operation.
Multi-process grinding with high accuracy

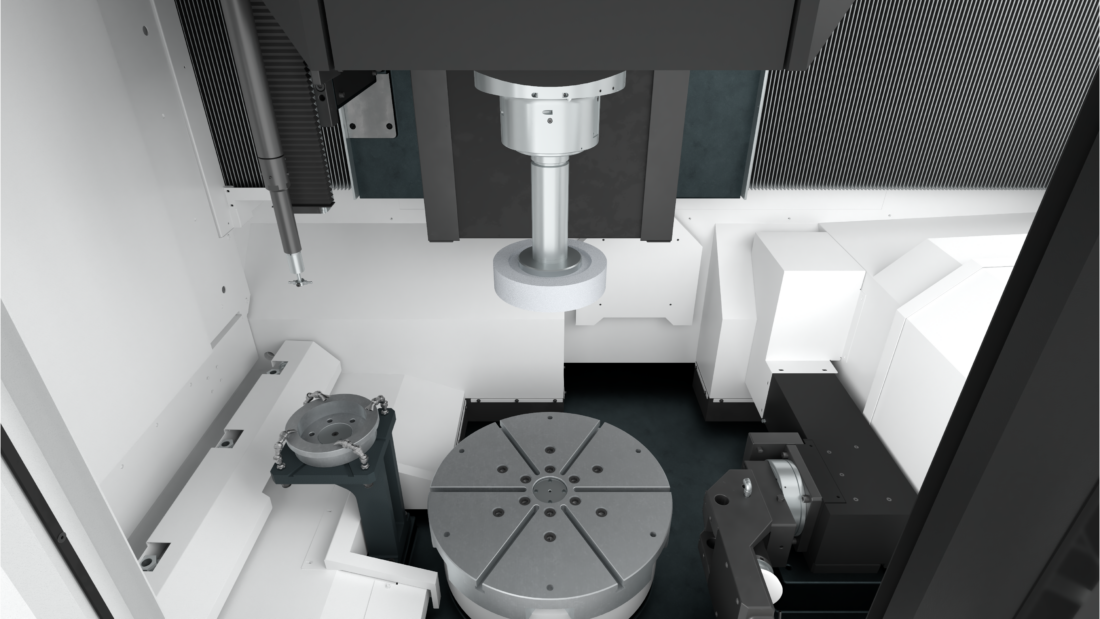

Highly efficient grinding is enabled by 2-position indexing of wheelhead, 0° for ID/OD grinding and 22.5° for OD/face using angular grinding wheel, and also by ATC (Auto Tool Changer) equipped as standard. You can select grinding wheel from WA or GC.
