Application Examples
Work spindle housing / Machine tool / ID, OD, back face
Overview
| Type of industry | Machine tool |
|---|---|
| Type of part | Machine tool part |

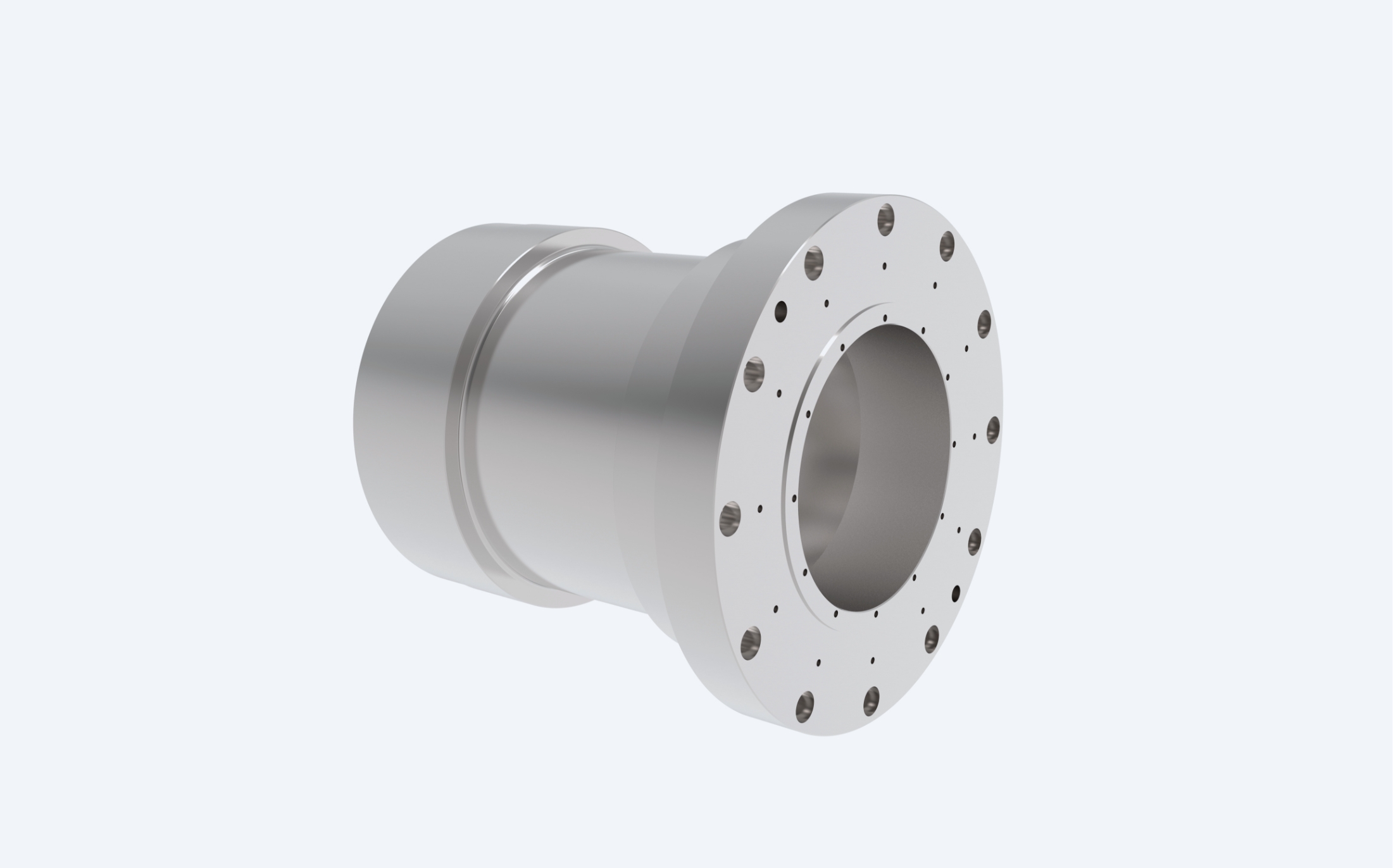

| Name of part | Work spindle housing |
| Material | FC300 |
| Dimension | ø410 mm(16.1 in)×445 mm(17.5 in) |
| Grinding surface | ID, OD, back face |
| Roundness | ID(top): 1.2μm(0.00005 in) ID(bottom): 0.7μm(0.00003 in) OD: 1.1μm(0.00005 in) |
| Coaxiality | ID, OD: 1.7μm(0.00007 in) |
| Squareness | OD, Back face: 0.9μm(0.00004 in) |
| Cycle time | 83 min.（CVG-6） |
