Vertical Multi-process Grinding Machine - Vertical Mate Vertical Mate 35

Multi-process

Vertical Mate 35

General-purpose model with excellent cost-performance

  • Applicable for small/middle-size workpiece up to max loading weight 200kg(440lb), work spindle swing ø350mm(13.7in).
  • A general-purpose model developed by simplifying the machine structure, yet achieving high accuracy equivalent to conventional models.
  • Multi-process grinding of ID, OD and face enabled by 2-position turret and ATC with 4 standard quills.
  • User-friendly operation panel equipped with conversational programming software "GriPS Ⅱ" as standard.

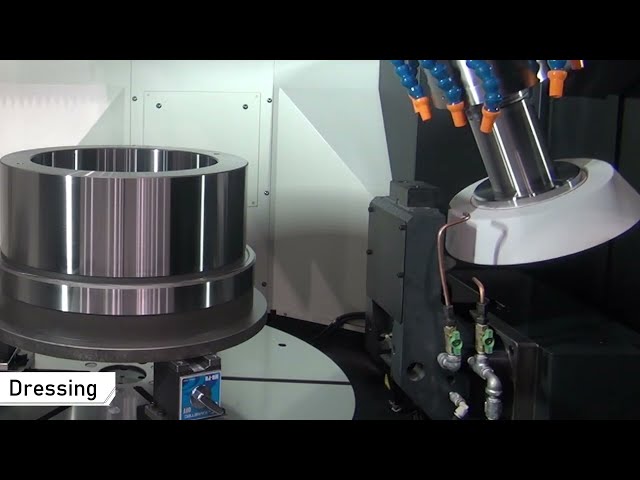

Movie

Thumbnail

Specification

Range of internal grinding diameter ø20 mm(0.8 in) ~ ø300 mm(11.8 in)
Range of external grinding diameter ~ ø350 mm(13.7 in)
Grinding length ID 250 mm(9.8 in) / OD 275 mm(10.8 in)
Work spindle swing ø350 mm(13.7 in)
Workpiece height 350 mm(13.7 in)
[including fixture]
Max. loading weight on work table 200 kg(440 lb)
[including fixture]
Grinding spindle rotation speed 18,000min-1
Floor space (W×D) 1,980 mm(78.0 in) × 3,580 mm(141.0 in)

Highlights

Roundness 1.0μm guaranteed

Even in developing a desired model by narrowing down to basic performance, we make no compromises in accuracy. As the front runner of vertical grinding machines, Taiyo Koki provides high accuracy with multi-processing capability and contributes to various scenes of grinding operation.

Multi-process grinding with high accuracy

Highly efficient grinding is enabled by 2-position indexing of wheelhead, 0° for ID/OD grinding and 22.5° for OD/face using angular grinding wheel, and also by ATC (Auto Tool Changer) equipped as standard. You can select grinding wheel from WA or GC.
