Small-type Vertical Grinding Machine IGV-3N
High-rigidity internal grinding machine with space-saving feature and extensibility
- Excellent operability and space saving by its vertical structure.
- Floor space at standard spec : 1,400mm(55.2in) × 3,050mm(120.1in)
- Specialized in high-accuracy and high-efficiency ID grinding of mass-produced precision parts, and flexible for various market needs with extensive options including automation.

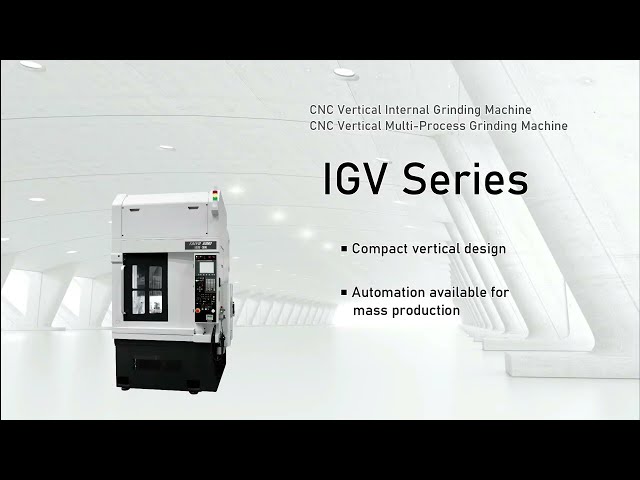

Movie
Specification
| Range of internal grinding diameter | ø250 mm(9.8 in) |
|---|---|
| Grinding length | 150 mm(5.9 in) |
| Work spindle swing | ø380 mm(14.9 in) |
| Workpiece height | 300 mm(11.8 in) [including fixture] |
| Max. loading weight on work table | 200 kg(440 lb) [including fixture] |
| Grinding spindle rotation speed | 18,000min-1 |
| Floor space (W×D) | 1,400 mm(55.2 in) × 3,050 mm(120.1 in) |
Highlights
Peripheral equipments Option
Plenty of options are available such as measurement device, chuck, dresser, coolant system, etc. Based on our own know-hows we developed over the years of experiences, we offer optimal options to solve your problems.
Automation system Option
Various automation systems are available to meet your needs, such as connecting multiple machines with a conveyor, or equipping a workpiece stocker with a robot, etc. The whole system is developed by TAIYO KOKI, and therefore we are able to provide strong support.
