Application Examples

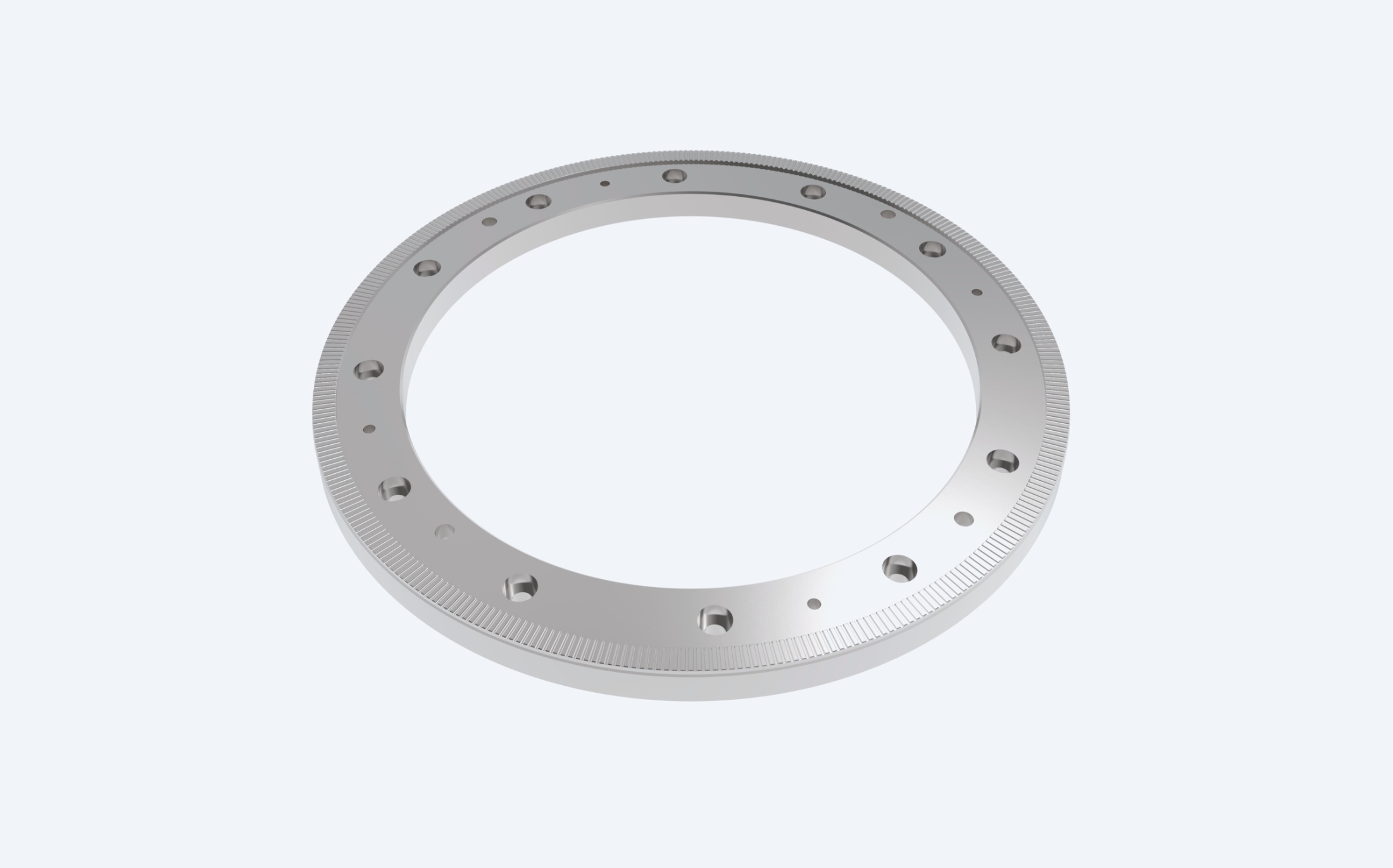

Curvic coupling / Machine tool / ID, OD, face, tooth surface
Overview
| Type of industry | Machine tool |
|---|---|
| Type of part | Machine tool part |
| Name of part | Curvic coupling |
| Material | SCM420 |
| Dimension | ø700 mm(27.5 in)×42 mm(1.65 in) |
| Grinding surface | ID, OD, face, tooth surface |
| Grinding accuracy | Teeth contact：More than 90％ |
| Runout | ID: 4μm(0.00016 in) OD: 6μm(0.00024 in) Face: 6μm(0.00024 in) |
| Cycle time | 220 min.（NVGH-12T |
